Usage
|
| |
- Cleaning boxes and palettes
- Removing oil for pre-treatment of painting
- Pretreatment for coating
- Cleaning pat and glass bottles
- Cleaning batteries
- Pretreatment for brazing
|
|
 |
| |
|
CRATE Cleaner(CW-900) |
 |
|
|
| |
|
|
 Features
- Easily installed and movable with compact
design.
- With the functions of rotation and
backlash, washing without blind spot is
realized.
- Able to reuse immediately due to the
functions of washing and separating fluid
at high speed.
- Automatic washing by a timer.
- When a door is open it is automatically
stopped which is designed for safety.
- All automatic control is available
to be done by PLC.
- Variable inverter motor tuned to washing/drying
is applied.
Application

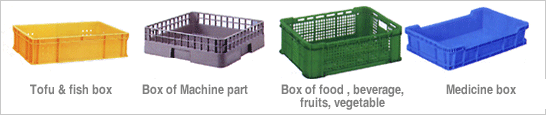

- As for box washing, it is highly recommended
by tofu factories and food manufacturers.
- Washing boxes of foods and beverages
- Washing boxes of automobile components
|
|
|
| |
|

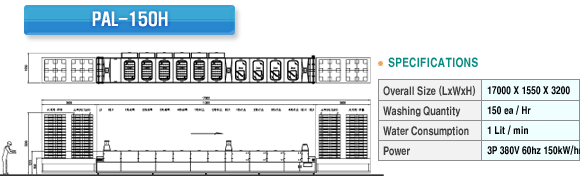

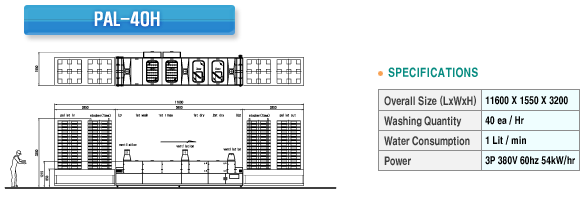

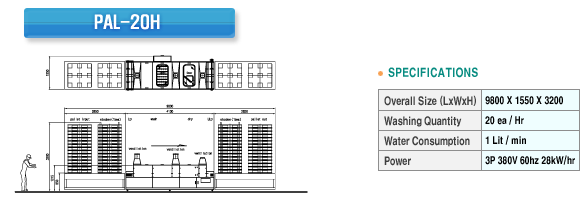

Palette Cleaner |
 |
|
|
| |
|
|
It is a fully
automatic tunnel-consecutive-type and precipitation-shaking?type
cleaner. It is useful for cleaning container
palettes or crates for foods, beverages,
agricultural/marine products, clean
parts, and medicines.
Feature
- Auto system including washing, rinsing,
drying.
- Auto stocker and auto dispenser function
for plenty of pallets.
Usage
- Washing pallets of the various standard
|
|
|
| |
|
In-Line Type |
 |
|
|
| |
|
|
It is an unmanned
in-out automatic cleaner. It is useful for
consecutive cleaning and for cleaning the
surface of assembly (batteries, plastic box,
palettes).
|
|
|
| |
|
TROLLEY TYPE |
 |
|
|
| |
|
|
It is a steam
non-fat facility used for the trolley conveyor
process. Unmanned and automatic, it is available
for consecutive tasks. It is suitable for
factory automation and best for pretreatment
for painting. (Range case, chassis frame,
computer case, press parts)
| |
|
| |
|
MESH BELT TYPE |
 |
|
|
| |
|
|
It is an auto-dipping
cleaning and drying system, which uses a
mesh belt. It is for organic detergents.
It can be connected to transportation lines,
such as soldering machines and conveyors.
It is designed to be suitable for unmanned
automation and consecutive tasks. It will
make a big contribution to factory automation
and cost reduction. (PCB ASS'Y, Press Panel,
Case)
|
|
|
 |
|
|
|
| |
|
|
|
